Description

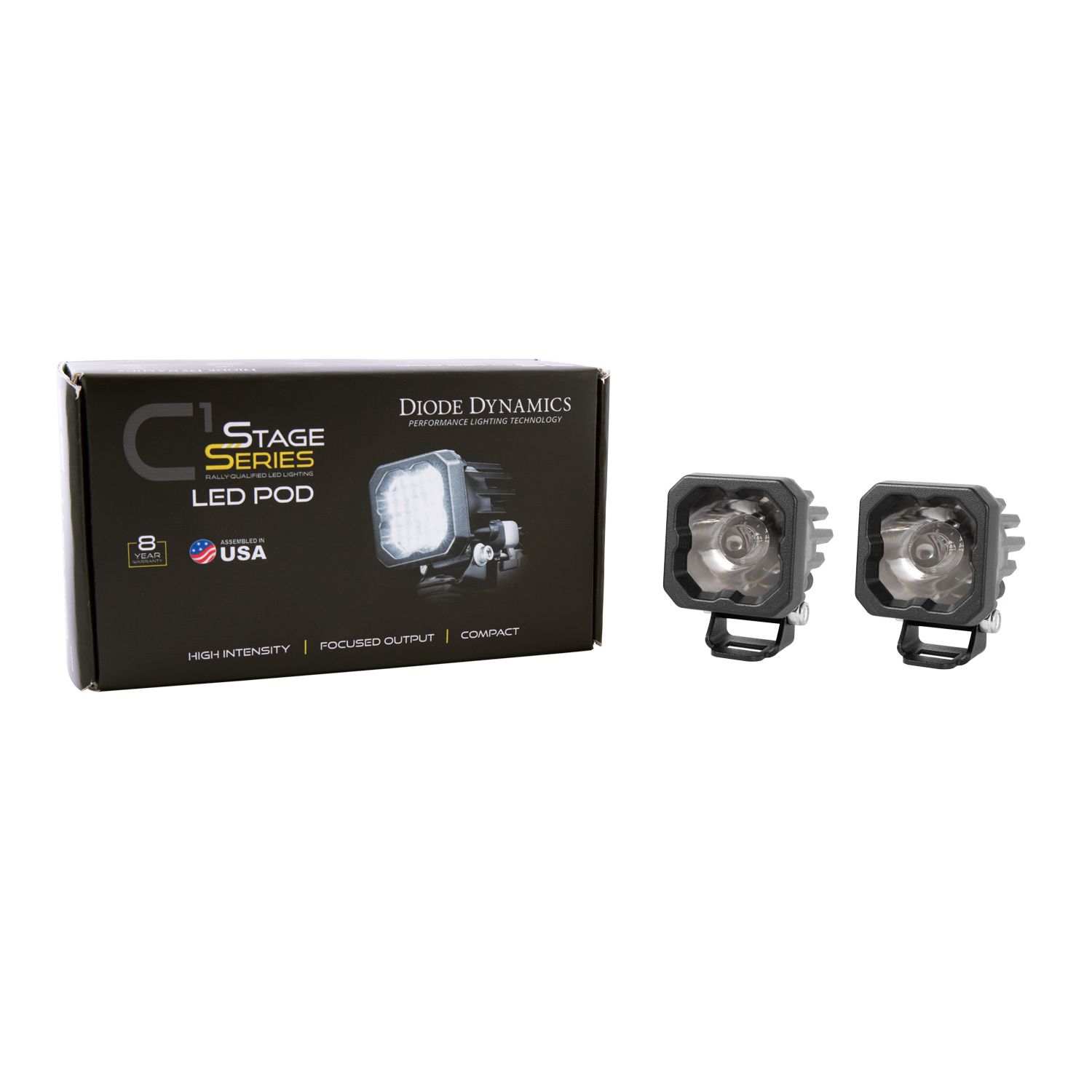

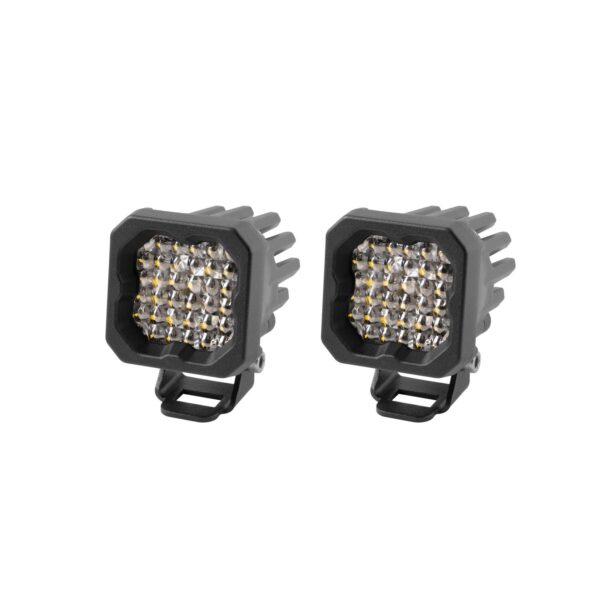

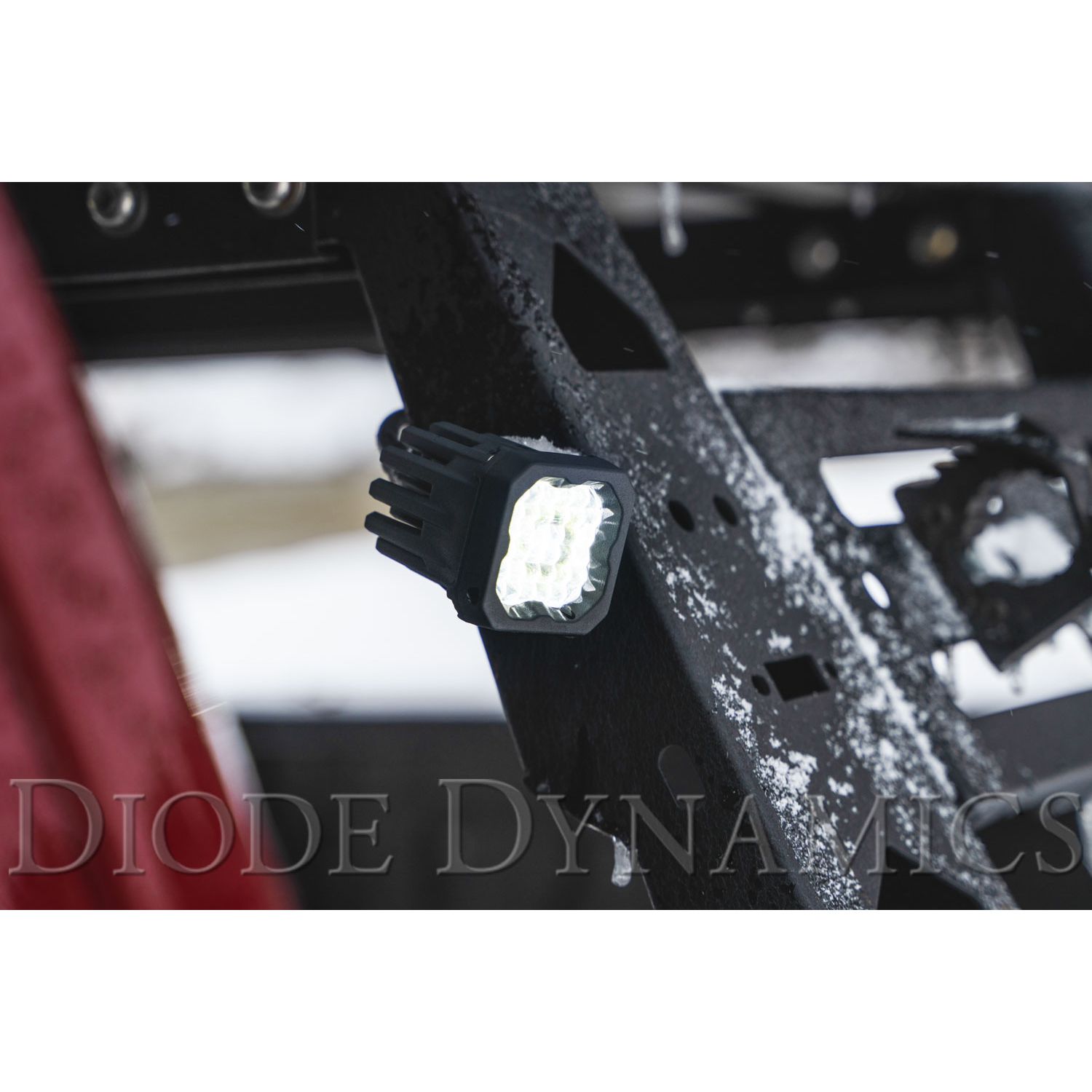

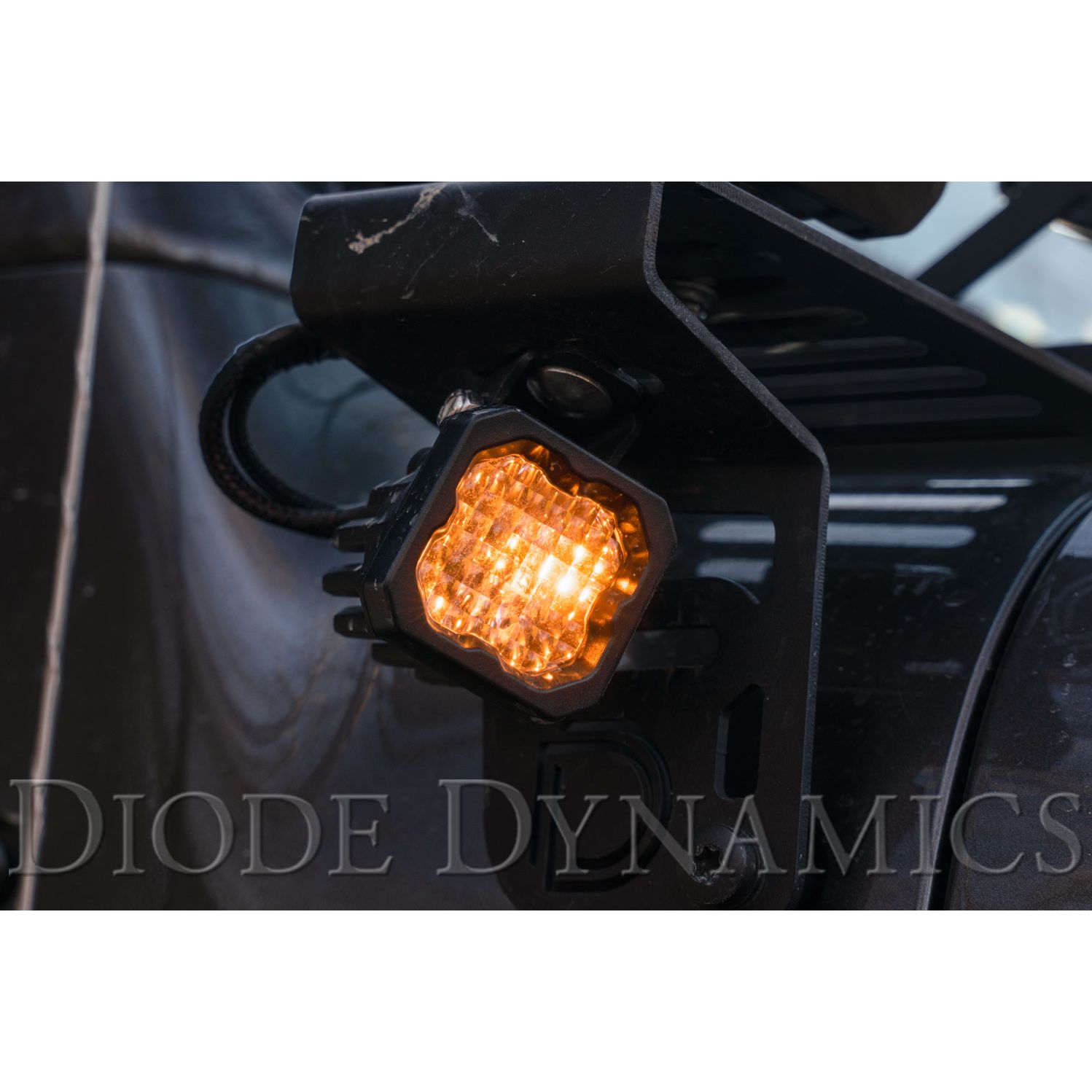

<p><strong>Features</strong></p><ul><li>Compact single-LED form factor</li><li>High intensity LED chip</li><li>Backlighting available in white amber red and blue</li><li>Pin-fin heatsink design for superior thermal dissipation</li><li>Integrated Deutsch-style connector</li><li>Designed torture tested and assembled in USA</li></ul><br><p><strong>Overview</strong></p><p>Introducing the Stage Series C1 LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed for maximum performance and light output in our most compact versatile package yet. The SSC1 can be mounted virtually anywhere on your car truck motorcycle or UTV including spots where larger LED pods won't fit.</p><p><strong>Focused.</strong> Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.</p><p><strong>Backlight Functionality </strong>The Stage Series C1 LED Pod includes a distinctive backlight feature as well. The SSC1's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find in other single-LED pods on the market.</p><p><strong>Simple connections. </strong>All Stage Series C1 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.</p><p><strong>Proven Reliability.</strong> Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.</p>
Additional Attributes:
GTIN: 00691026129679
Voltage: 9-16V
Push or Twist Type: Push Type
Sheen Level: Matte
Base Color: Black
Drilling Required: No
Bolt Grade: High
Bolt Thread Type: Medium
Base Material: Steel
Mounting Hardware Included: Yes
Universal Or Specific Fit: Specific
Grade Type: Performance
Light Beam Pattern: Flood
Wattage: 19
Add-On: N/A
Color Temp: 6000K
Compliance Rating: SAE J575 Durability Test
Intensity (lux): 925 cd
Measured Output (lumens): 2 300 lm
Operating Temperature: -40C to 85C (-40F to 185F)
Prop 65 Yes/No: N
Extended Information:
Emissions : 4
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 9 x 6 x 4 inches
Weight: 1.724 PG
Stage_Series_C1_LED_Pod_Info_Guide
