Description

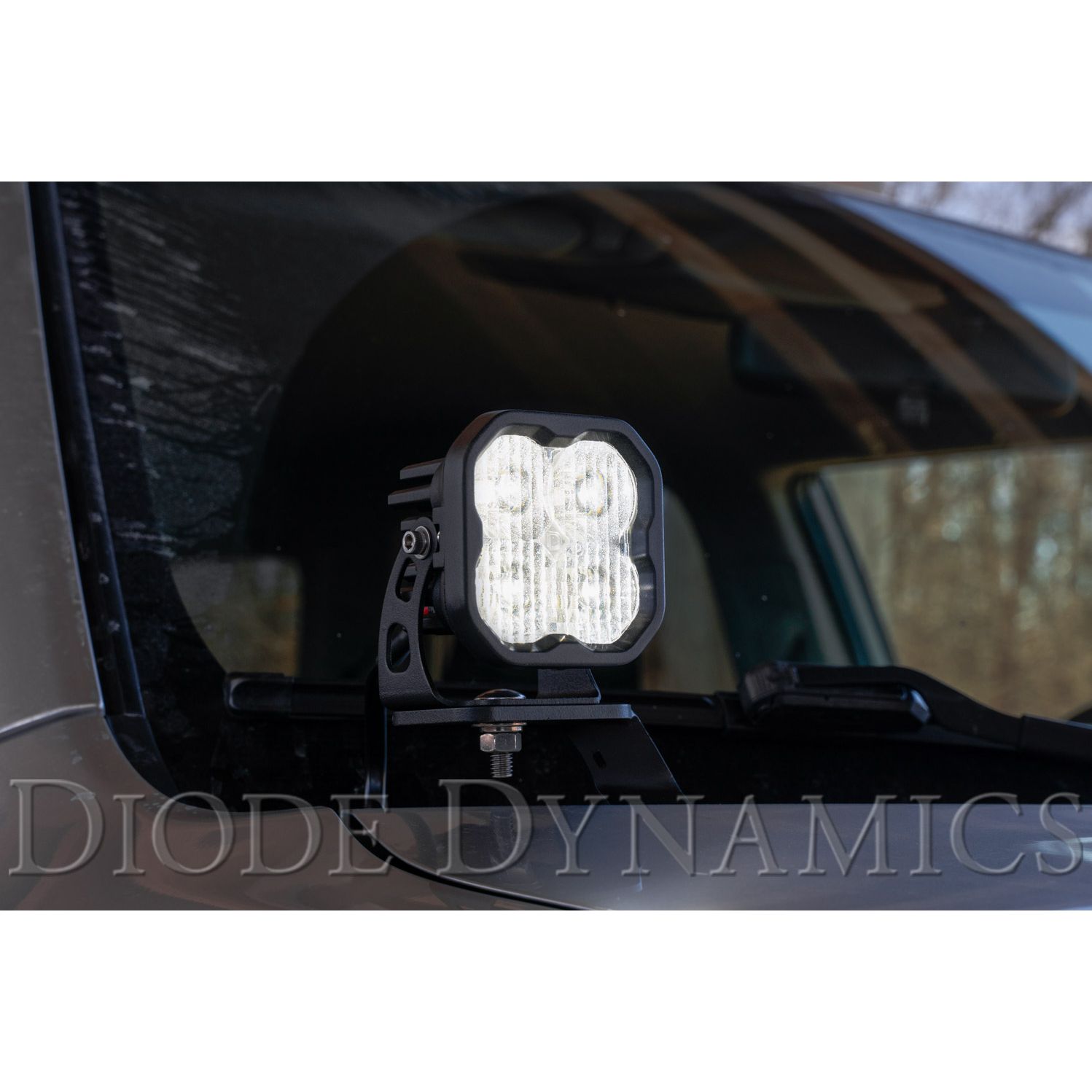

<p><strong>Features</strong></p><ul><li>Modern TIR optics provide highest intensity on the market</li><li>Backlight accent feature available in white amber red and blue</li><li>Durable powdercoated aluminum construction</li><li>Integrated Deutsch-style connector</li><li>Engineered and Assembled in USA</li></ul><br><p><strong>Overview</strong></p><p>Introducing the SS3 3 inch LED Pod! Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. All Stage Series LED pods are available in a cool white or selective yellow color and sport or pro power levels.</p><p><strong>Focused.</strong> Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency. The total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.</p><p><strong>Backlight Functionality.</strong> The Stage Series 3inch LED Pod is now available with a distinctive backlight in your choice of white amber red and blue. The SS3's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.</p><p><strong>Simple connections.</strong> All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.</p>
Additional Attributes:
GTIN: 00691025931297
Voltage: 9-16V
Push or Twist Type: Push Type
Sheen Level: Matte
Base Color: Black
Drilling Required: No
Bolt Grade: High
Bolt Thread Type: Medium
Base Material: Steel
Mounting Hardware Included: Yes
Universal Or Specific Fit: Specific
Grade Type: Performance
Light Beam Pattern: Spot
Wattage: 14.5
Add-On: N/A
Color Temp: 6000K
Compliance Rating: SAE J575 Durability Test
Intensity (lux): 151,000 cd
Measured Output (lumens): 1,520 lm
Operating Temperature: -40C to 85C (-40F to 185F)
Prop 65 Yes/No: N
Extended Information:
Emissions : 4
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 11 x 4 inches
Weight: 3 PG
Stage_Series_3in_Worklight_Pod_Info_Guide
