Pod light featuring advanced TIR optics for high efficiency and focus.

Description

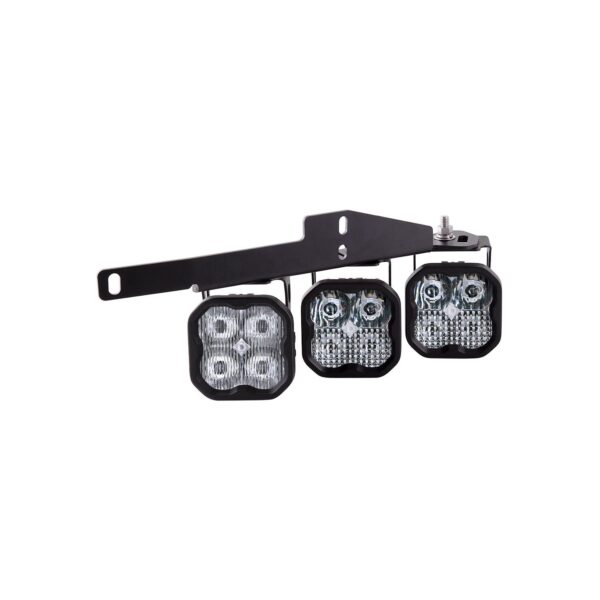

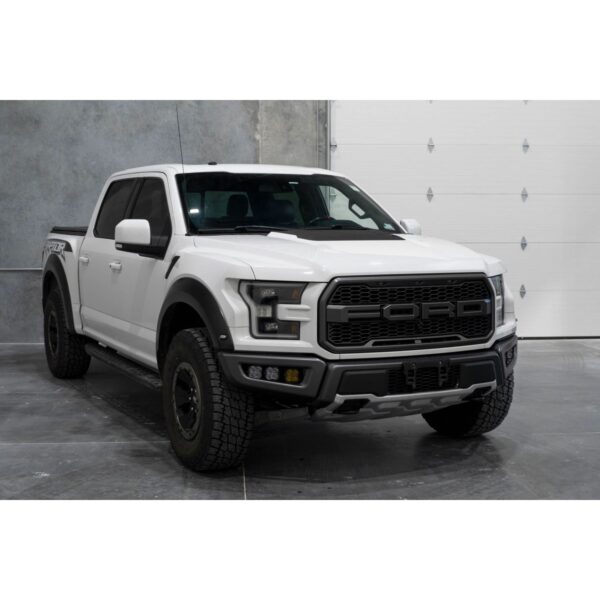

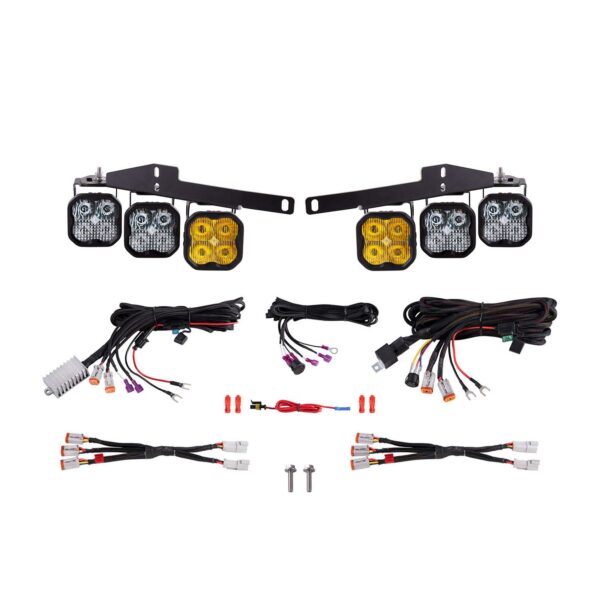

<p><strong>Features</strong></p> <ul> <li>Bolt-on fitment compatible with Ford Raptor 2017-2020.</li> <li>Adds SAE-compliant fog lights and powerful offroad lighting.</li> <li>Harnesses included for independent control of road-legal and offroad lighting.</li> <li>Backlight feature provides amber accent light.</li> <li>Highly durable powdercoated stainless steel bracket.</li> <li>Engineered and assembled in USA.</li> </ul> <br> <p><strong>Overview. </strong>The Stage Series Fog Pocket Kit compatible with Ford Raptor 2017-2020 from Diode Dynamics allows you to mount four SS3 LED Pods in the factory bumper openings. This kit adds some serious functionality to your Bronco with both road-legal fog lights and powerful offroad lighting. This kit includes application-specific brackets that were CAD-designed to install using factory mounting points. No cutting or drilling required!</p> <p><strong>Lighting for Every Situation. </strong>This kit includes two SS3 LED Pods in the SAE-compliant fog beam pattern and two SS3 LED pods in the combo beam pattern. This combination gives you different options whether you are on or offroad. All options use high-intensity LED emitters and TIR optics for unmatched focus and overall output.</p> <p><strong>Independent Control.</strong>With the included harness and adapters the two SS3 Fog pods and two SS3 offroad pods in this kit can be controlled independently allowing you to switch between road-legal fog lights and offroad lights with ease. The included H10-size or Molex adapters connect the SS3 fog pods to your factory halogen or LED fog light connecter while the off-road lights in this kit are controlled with either the included 3-way toggle switch or a factory-installed aux switch.</p> <p><strong>SAE Compliant.</strong> When installed as a pair and aimed in accordance with your state's regulations the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.</p>

Additional Attributes:

GTIN: 00691026122137
Voltage: 9-16V
DOT Approved: Yes
Street Legal: Yes
Fog Light Lens Color: Yellow
Bracket Color: Black
Lens Material: Polycarbonate
Terminal Type: Pin
Mounting Hardware Included: Yes
Grade Type: Performance
Housing Material: Aluminum
Light Shape: Rectangular
Light Housing Color: Black
812: No
Wattage: 14.5
Add-On: N/A
Compliance Rating: J583 Foglamp Beam Pattern
Intrusion Rating: IP67 Weatherproof
Operating Temperature: -40C to 85C (-40F to 185F)
Operating Voltage: 9-16V
Prop 65 Yes/No: N

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 20 x 10 x 12 inches
Weight: 19.976 PG

PDF:

SS3_Raptor_17-20_Fog_Light_Bracket_Install_Guide
