Description

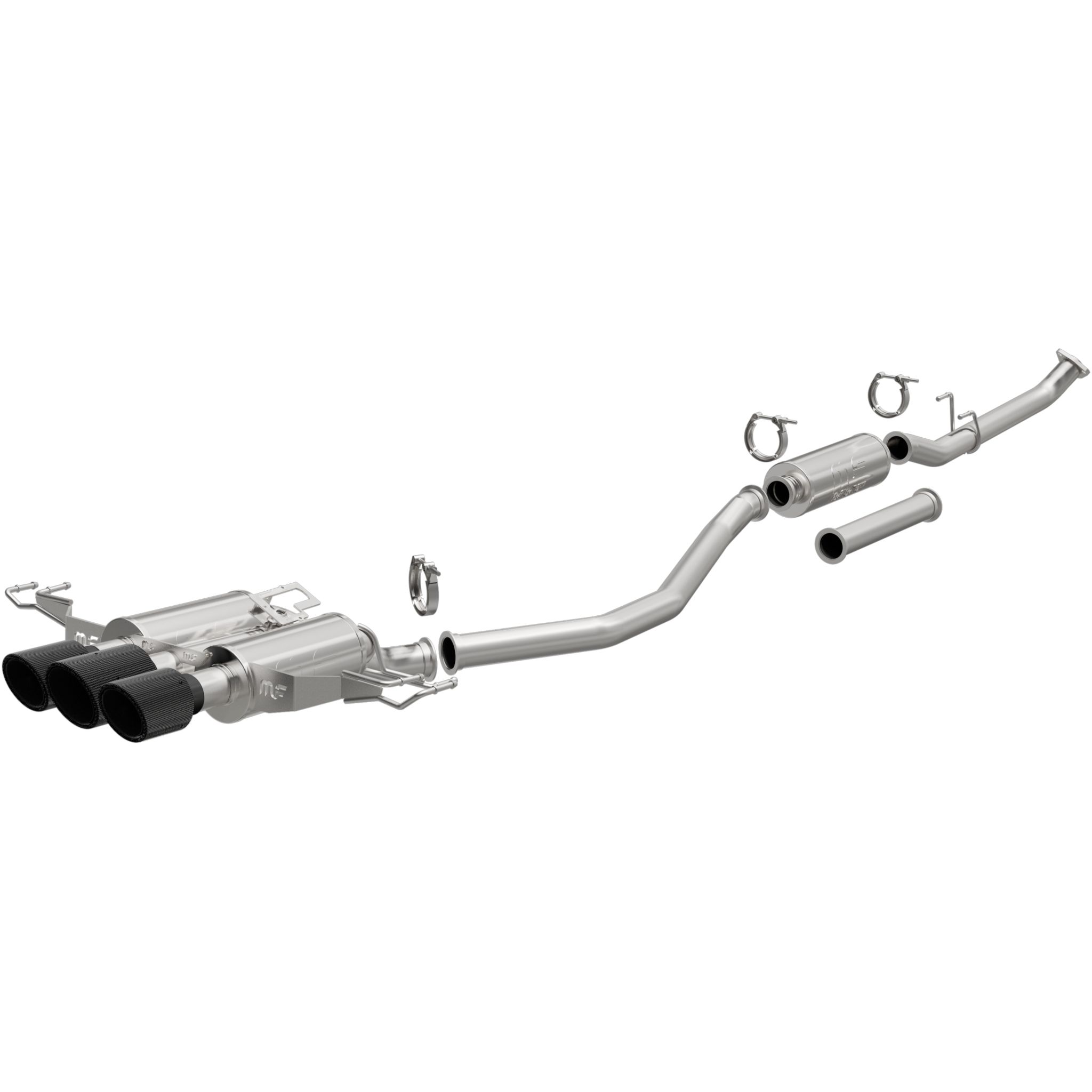

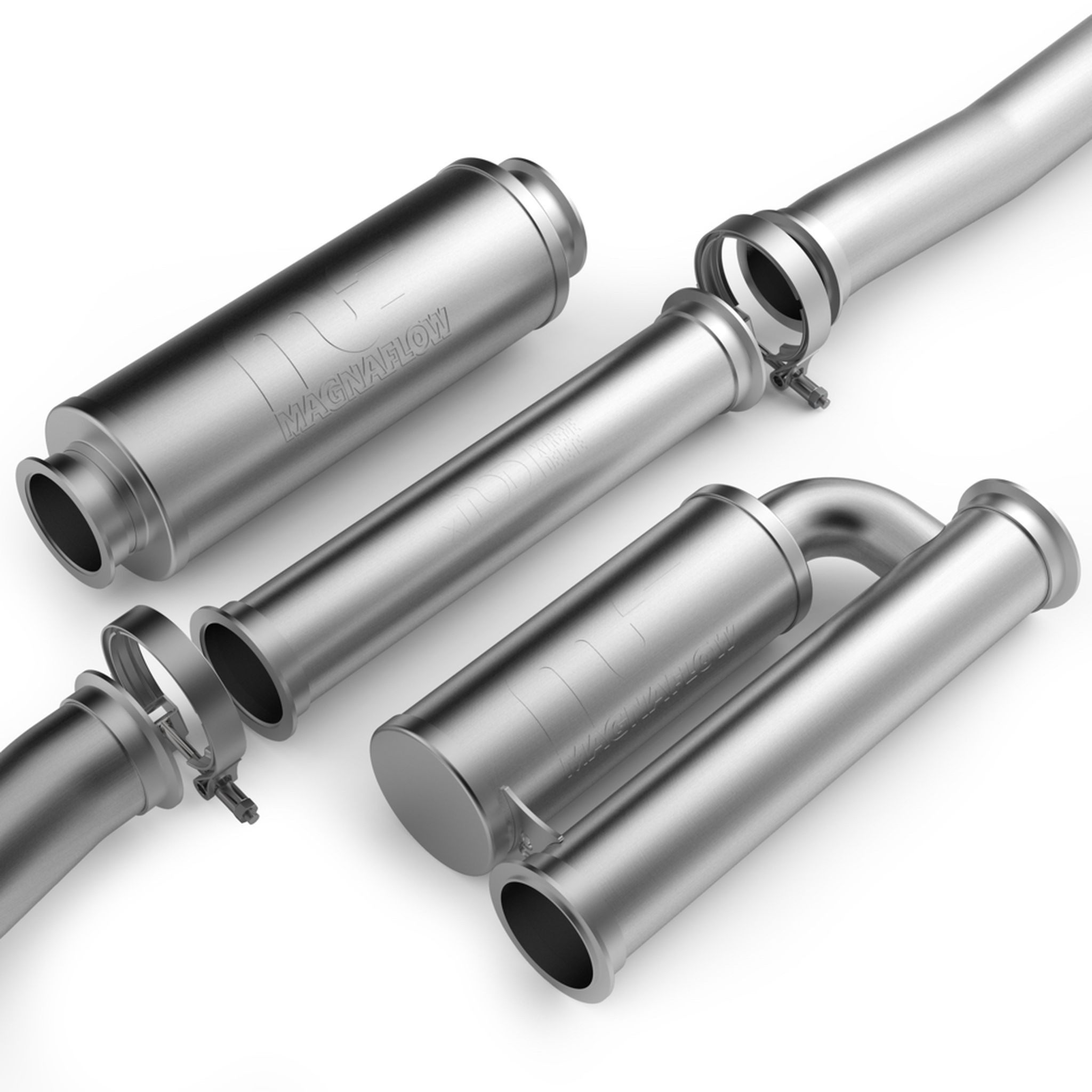

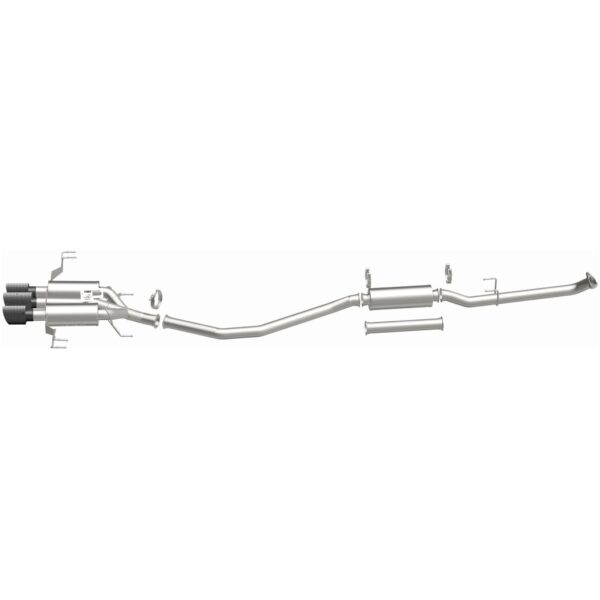

The MagnaFlow Honda Civic Type R xMOD Series Cat-Back Performance Exhaust System #19611 brings dyno-proven performance and the world’s most advanced modular exhaust technologies to your 2023-2024 Honda Civic Type R. Exhaust kit #19611 is designed to enhance your sporty compact with improved exhaust flow providing you with two different exhaust modes to choose from. This is thanks to the system’s 14” muffler module, which can be swapped for the included xTreme Delete straight pipe module when you want to unleash the full sonic fury of your ride’s turbocharged 2.0L powerplant. We recommend reserving the xTreme Delete module for track use only. Please check your local noise laws to ensure compliance. The system replaces your vehicle’s stock exhaust components from near the catalytic converter on back. #19611 is secured using V-band connections with male/female keyed flanges and a reinforced hanger bracket which prominently features a laser-etched MagnaFlow logo. The kit also integrates a cast 304 stainless steel valve that retains the original factory exhaust valve functionality. This Honda Civic Type R exhaust system features 2.5” mandrel bent main piping that passes through the xMOD module of your choice (14” round straight-through muffler module or xTreme Delete module) and a smooth Y-pipe transition before continuing on to two 11” round straight-through mufflers and a triple central rear exit with two 4” outer tips and a 4.5” center trip. All tips feature a double-wall, angle-cut rolled edge dry carbon fiber design. Exhaust kit #19611 is produced using advanced CNC precision robotic manufacturing techniques and made of durable, corrosion resistant stainless steel, all backed by MagnaFlow’s limited lifetime construction warranty.
Additional Attributes:
GTIN: 00888563185378
Exhaust Tip Shape: Round
Muffler (Front) Body Height: 5
Muffler (Front) Body Length: 14
Muffler (Front) Body Width: 5
Muffler (Rear) Body Height: 5
Muffler (Rear) Body Length: 11
Muffler (Rear) Body Width: 5
Exhaust Tip Quantity: 3
Exhaust Tip Finish: Carbon Fiber
Exhaust Tip Material: Carbon Fiber
Muffler Type: Straight-Through
Clamps Included: Yes
Valve Type: Actuated
Gasket Or Seal Included: No
Clamping Type: V Band
Muffler Body Material: Stainless Steel
Muffler Quantity: 3
Valve Included: Yes
Mounting Bracket Included: No
Exit Style: Triple Center Rear
Main Piping Diameter: 2.5
Exhaust Tip Connection: Welded-On
Exhaust Tip Cut: Angle Cut
Exhaust Tip Edge: Rolled Edge
Exhaust Tip Resonated: No
Exhaust Tip Diameter Position Inside: 4.5
Exhaust Tip Diameter Position Outside: 4
Exhaust Tip Length Position Inside: 7.5
Exhaust Tip Length Position Outside: 6.75
Prop 65 Y/N: No
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 51.5000 x 40.0000 x 8.6250 inches
Weight: 43.0000 PG
19611
