Description

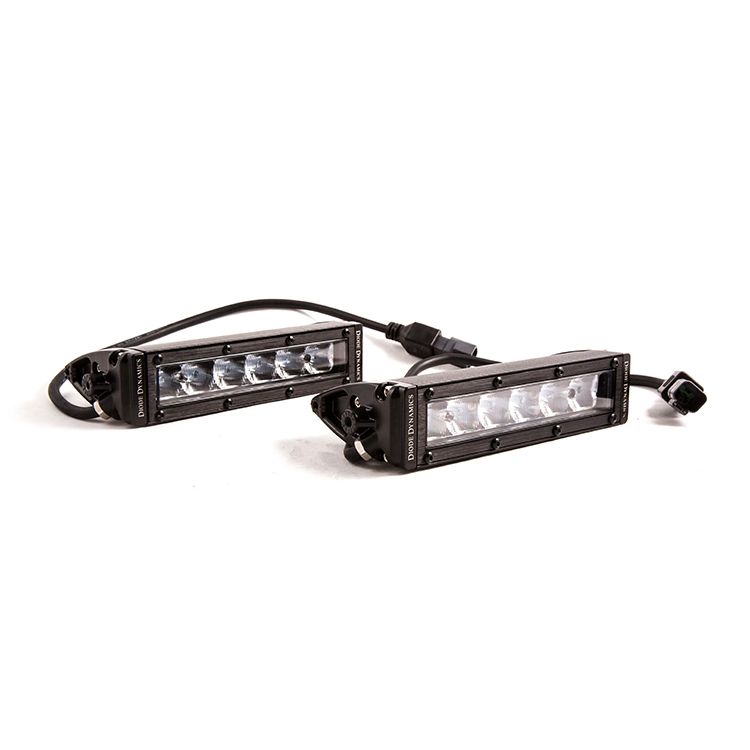

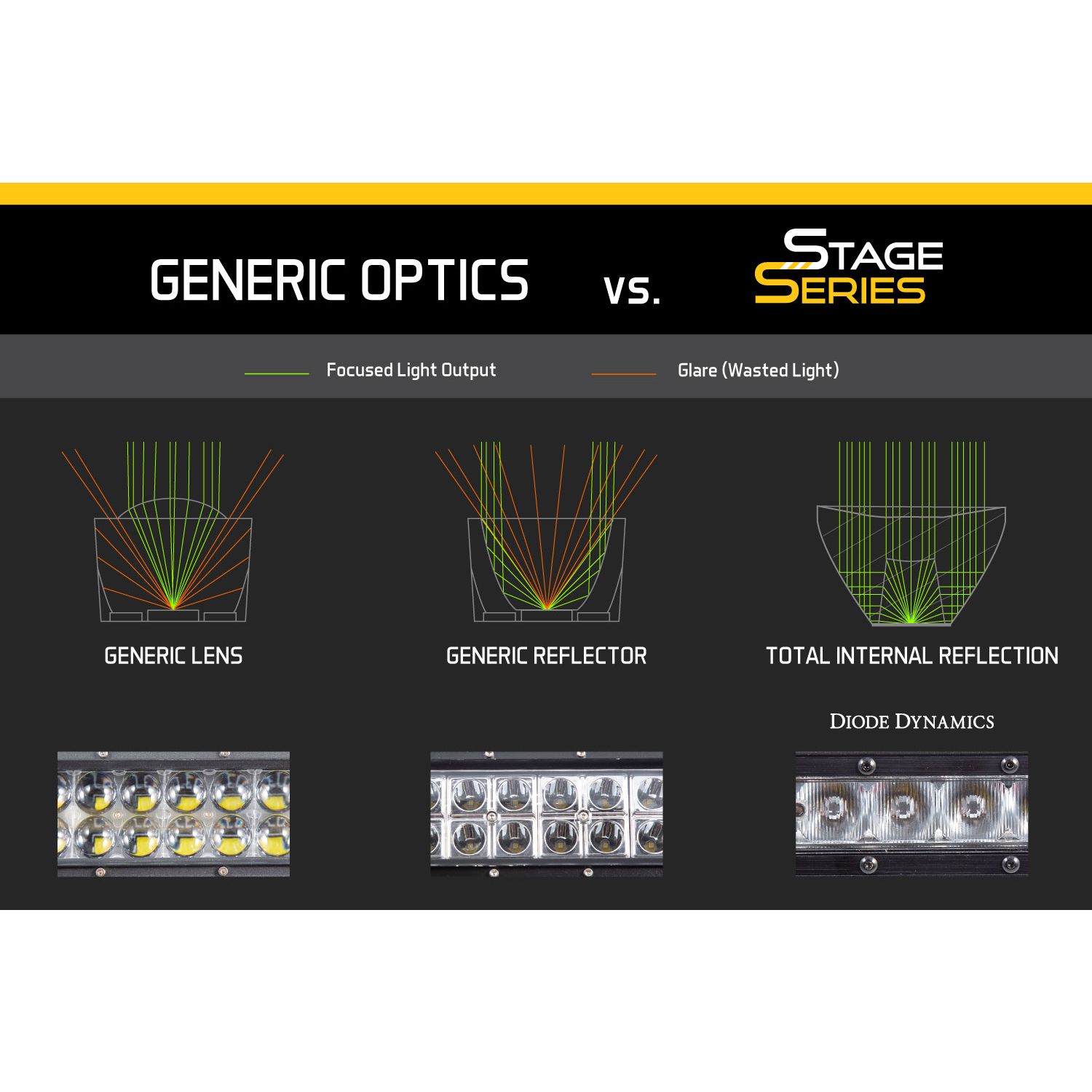

<p><strong>Features</strong></p><ul><li>Advanced TIR optics provide high efficiency and focus</li><li>High-intensity automotive-type LEDs with pure white color</li><li>Available in Driving Wide or Flood beam patterns</li><li>Slim 42mm housing for low-profile fitment</li><li>Durable matte powdercoated extrusion</li></ul><br><p><strong>Compact.</strong> The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well.</p><p><strong>Focused.</strong> Thanks to the high-intensity Lumileds LED chips coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic the total intensity is far higher than a standard generic light bar. The TIR optic collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.</p><p><strong>Functional Patterns.</strong></p><p >The <strong>Driving</strong> pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 30×20 degree pattern that is far more useful for directing light downrange at high speeds.</p><p>The <strong>Wide</strong> pattern provides an extremely wide field of view without wasting any light in the sky above and provides a 80×20 degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.</p><p>The <strong>Flood</strong> pattern was designed to provide uniform even illumination and a full 80×50 degree spread of light. Unlike generic flood light optics that are simply a heavily diffused spot our flood optic is a true optically designed spread resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds a backup or reverse light or to light up a worksite.</p>
Additional Attributes:
GTIN: 00691026115504
Voltage: 9-24V
DOT Approved: Yes
Street Legal: No
Housing Shape: Rectangle
Lens Width: 6
Lens Length: 1.625
Base Color: Black
Wiring Harness Length: 6
Bracket Color: Black
Lens Material: Polycarbonate
Base Material: Steel
Terminal Type: Pin
Mounting Hardware Included: Yes
Universal Or Specific Fit: Universal
Grade Type: Performance
Housing Material: Aluminum
Light Shape: Four Sided
Light Housing Color: Black
Wiring Harness Included: No
Switch Included: No
Housing Color: Black
Relay Included: No
Bracket Material: Steel
Add-On: N/A
Prop 65 Yes/No: N
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 10 x 5 inches
Weight: 2.889 PG
