Description

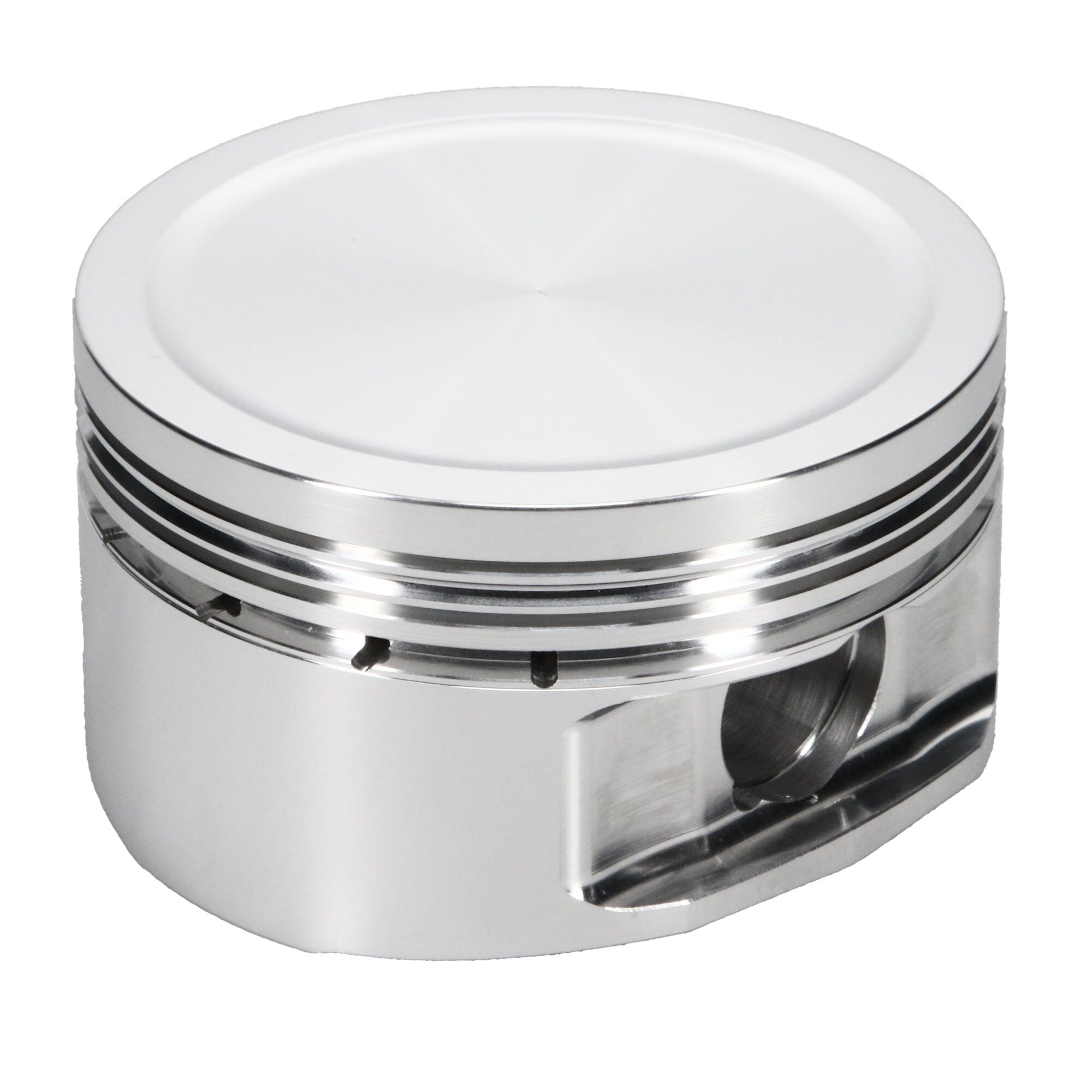

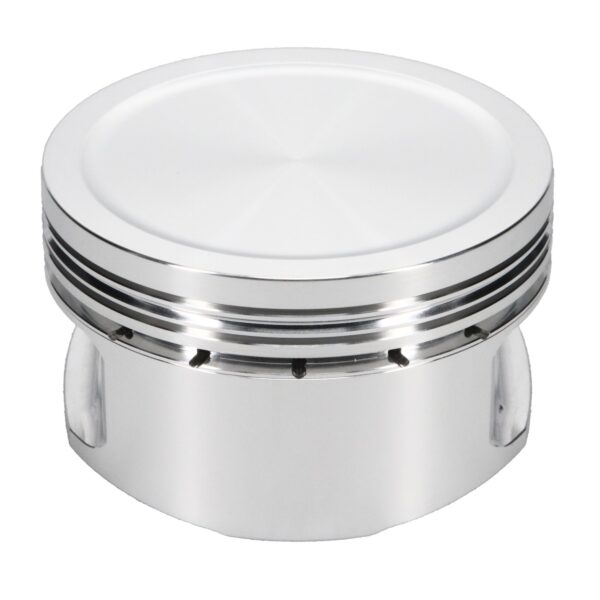

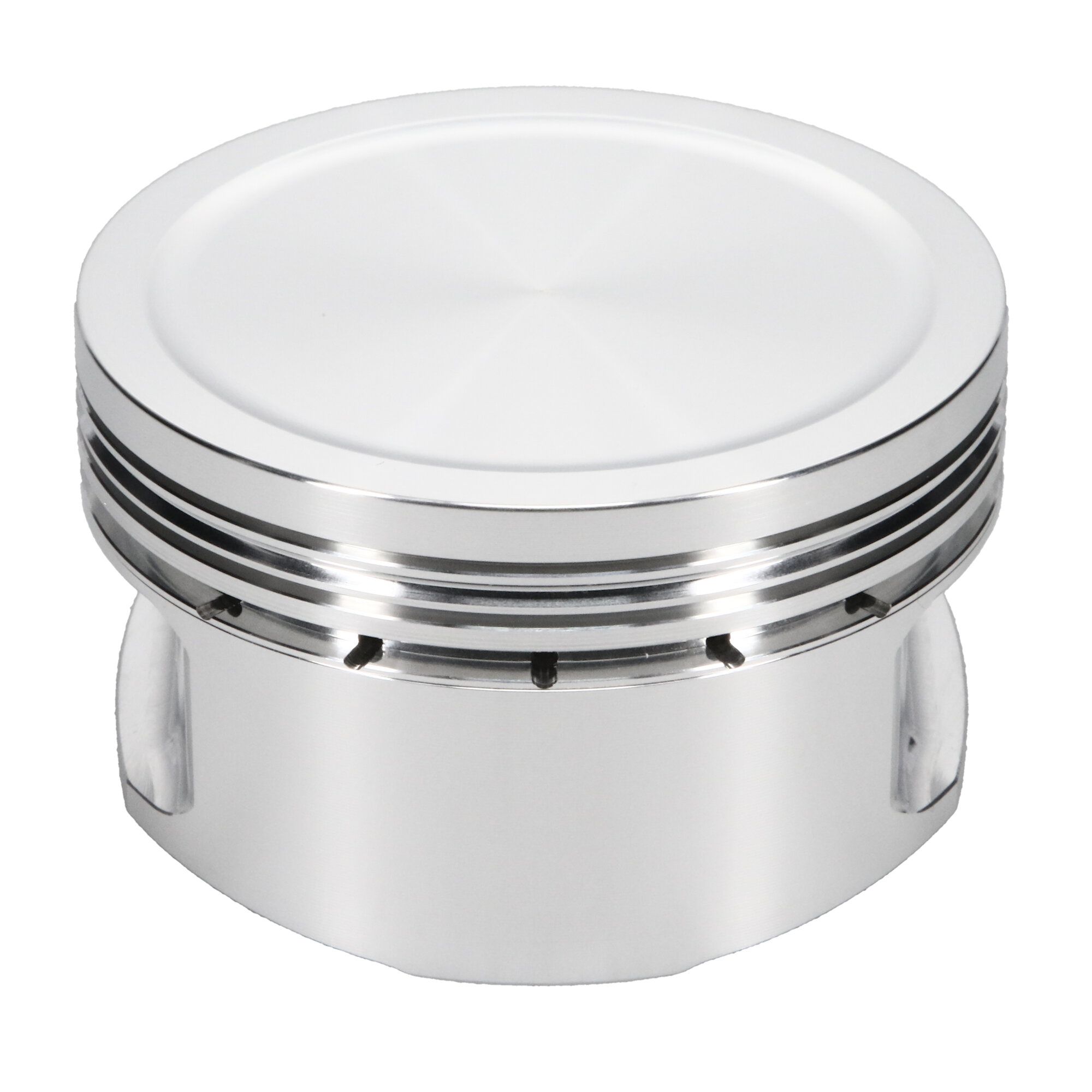

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged powersports pistons. Covering everything from the lake to the mountains, JE?s watercraft and snowmobile pistons are engineered, forged and machined 100% in the USA. JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. The heavy engine loads, excessive operational heat and high cylinder pressures of these engines were taken into account with every JE piston design, and the performance is proven with every handful of throttle. Equip your PWC or sled with the best in forged pistons.
Additional Attributes:
GTIN: 00193564218933
Add-On: JG1001-3268
Add-On: 827-2250-15-93C
Add-On: 827-050-MW
Bore Diameter – Web: 83.00 MM
Bore Diameter: 83.00
Compression Ratio Actual: 9.50:1
Cylinder Head: ULTRA 300X
Engine Type: ICE
Forging Type: Round
Industry: Powersports
Oil Ring Thickness: 0.111
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 279
Piston Head Type: Dish
Piston Material: 2618
Piston Series: JE Pistons
Piston Volume: -2.70
Product Market: Water & Snow
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Second Compression Ring Thickness: 0.0480
Top Compression Ring Thickness: 0.0400
Wrist Pin Length: 2.250
Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter: 0.827
Wrist Pin Wall Thickness: 0.150
Extended Information:
Emissions : 3
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 5.000 x 9.000 x 5.000 inches
Weight: 4.000 PG
