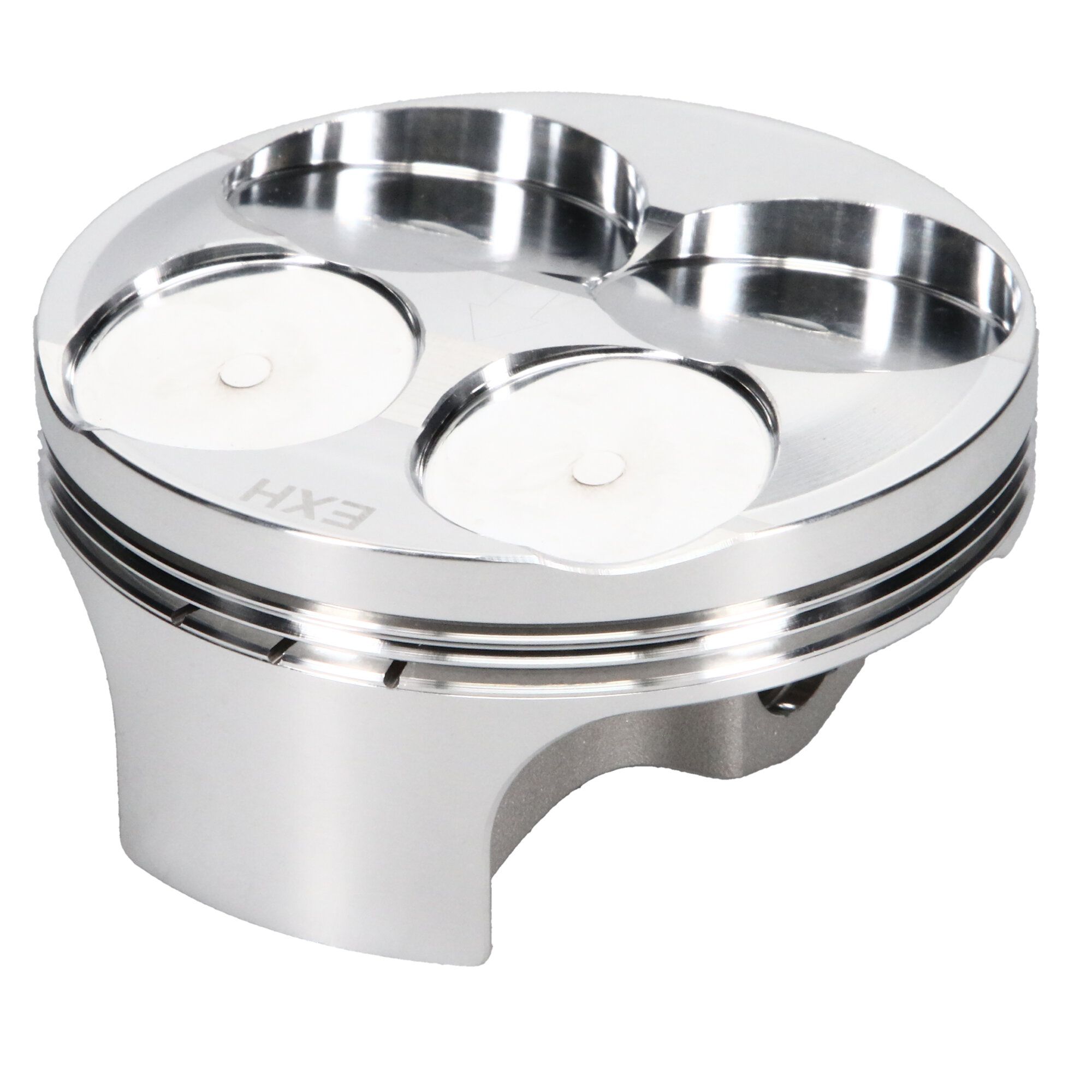

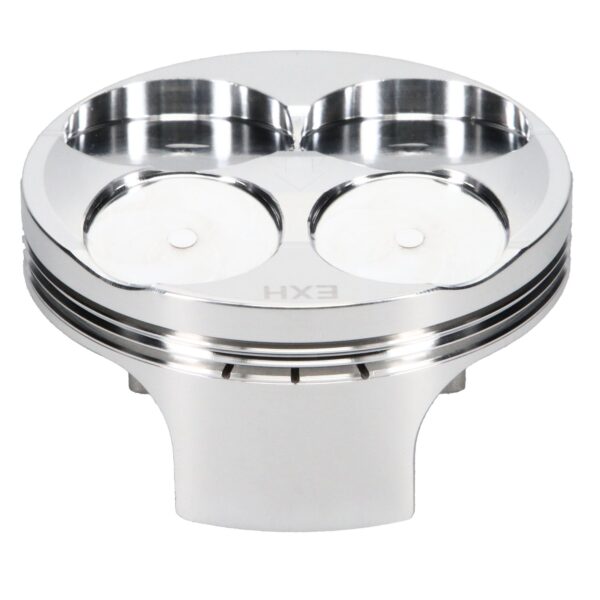

JE, Kawasaki, 77.00 mm Bore, 1 Cyl. Kit

Description

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for dirt bike and other off-road motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the motocross track to the trail and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Additional Attributes:

GTIN: 00193564218476
Add-On: JC3301-3031
Add-On: 630-1650-12-93C
Add-On: 630-050-MW
Bore Diameter – Web: 77.00 MM
Bore Diameter: 77.00
Compression Ratio Actual: 13.50:1
Cylinder Head: RMZ 250
Engine Type: ICE
Forging Type: FSR
Industry: Powersports
Oil Ring Thickness: 0.0585
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 161
Piston Head Type: Dome
Piston Material: 2618
Piston Series: JE Pistons
Piston Volume: -4.16
Product Market: Off-Road
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0360
Wrist Pin Length: 1.650
Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter: 0.630
Wrist Pin Wall Thickness: 0.120

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5.000 x 5.000 x 5.000 inches
Weight: 0.800 PG
