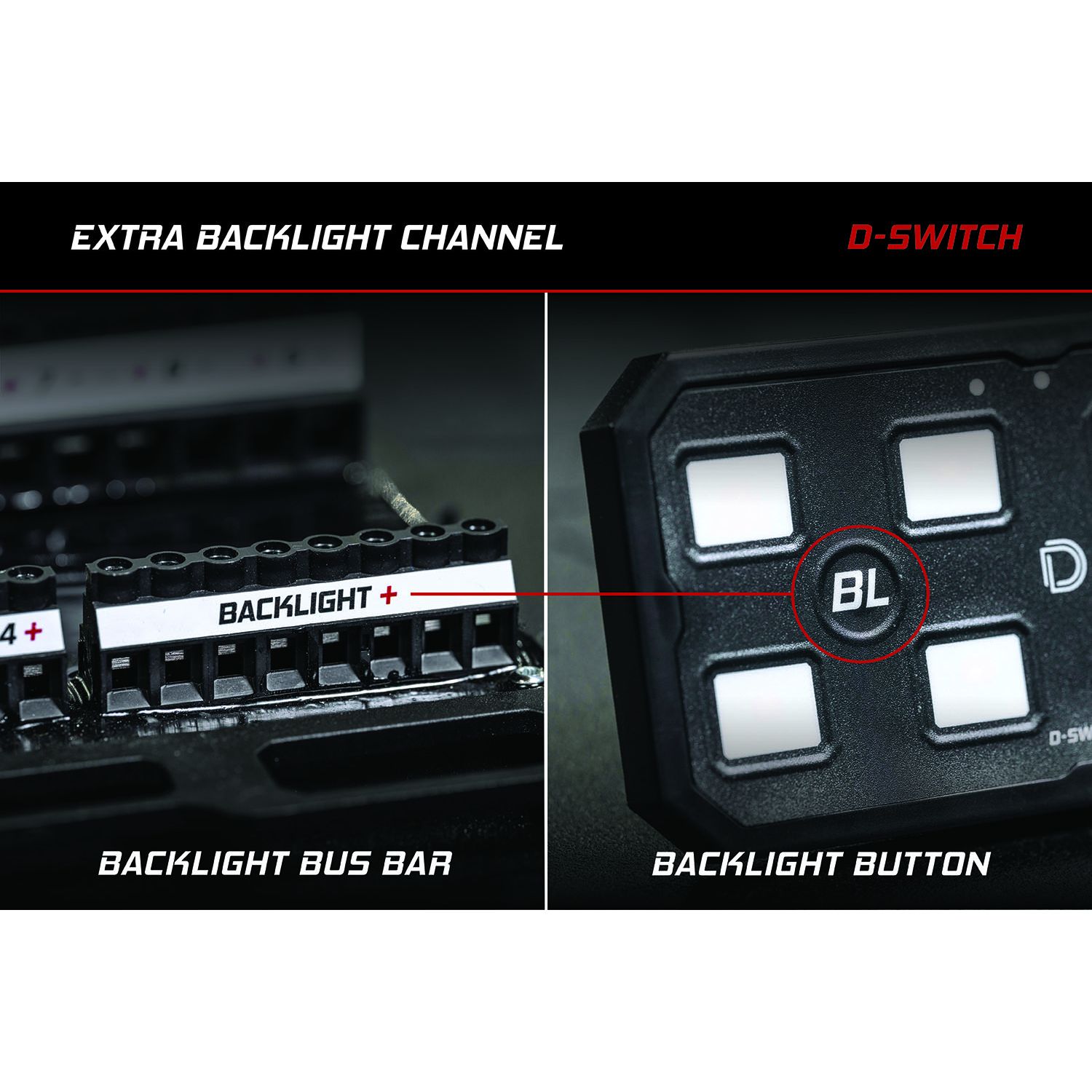

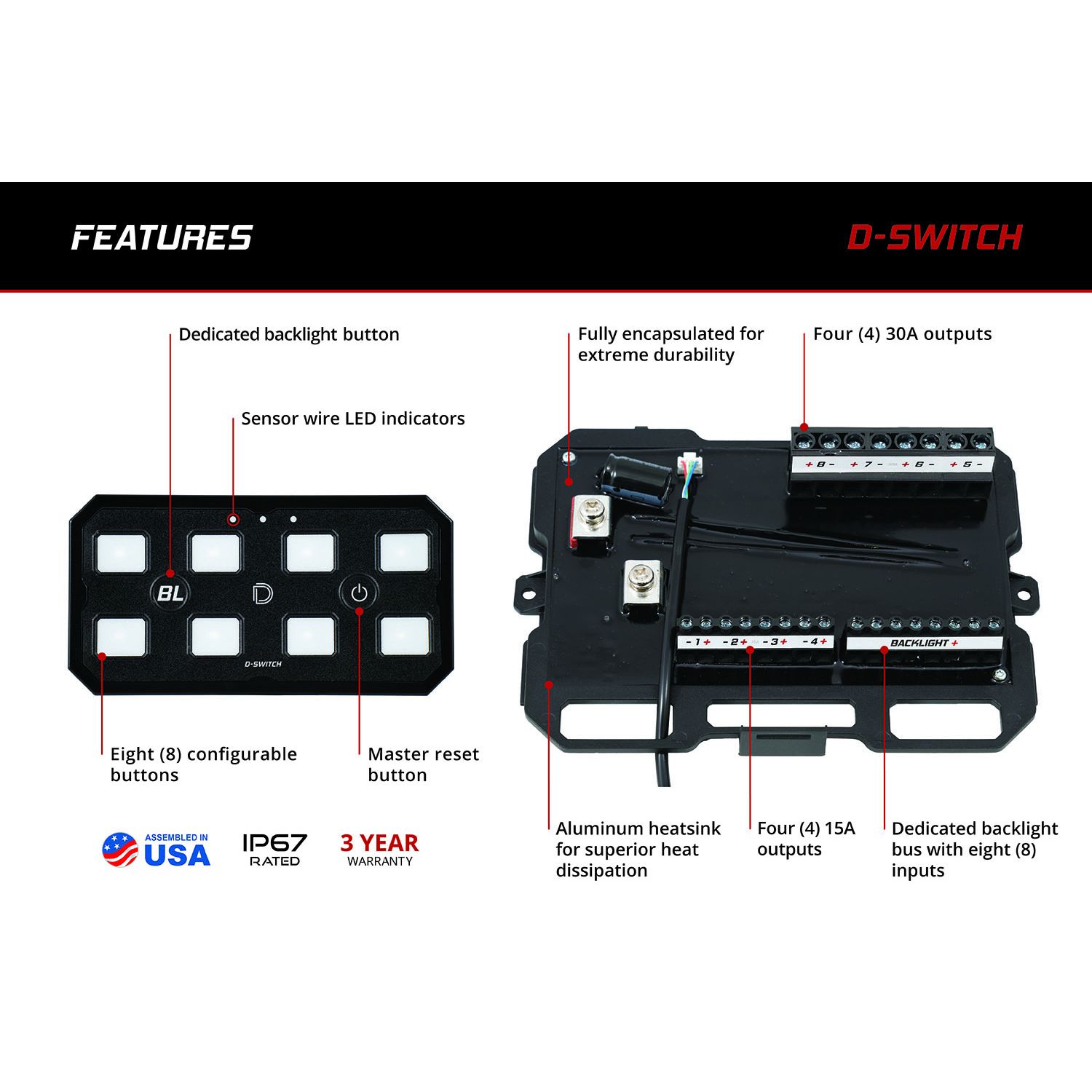

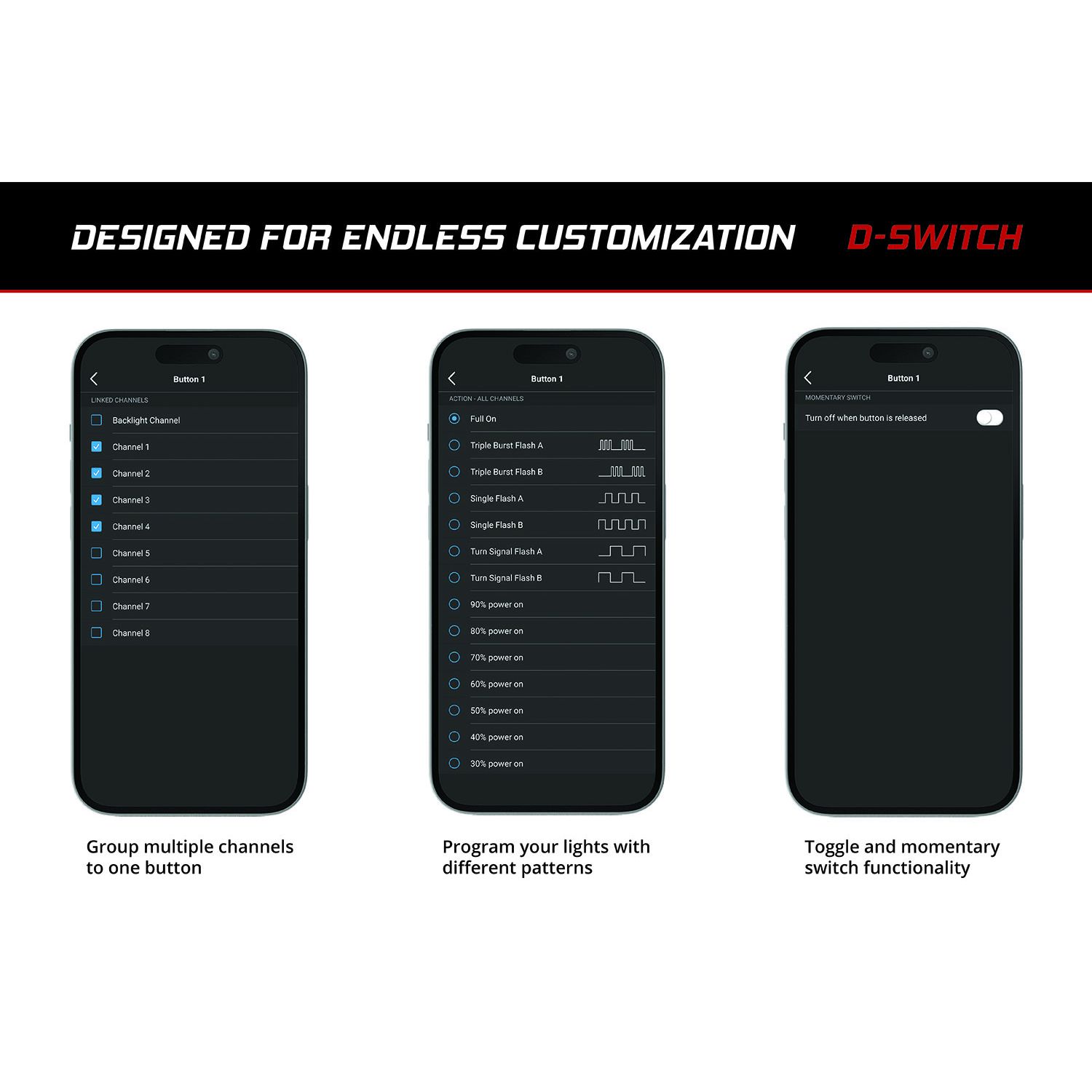

Overview Upgrade your vehicles setup with the Diode Dynamics D-Switch! This advanced 8-channel switch panel gives you full control over any 12V accessory with four 30A and four 15A outputs delivering serious power with unrivaled customization. Dedicated Backlight Channel. Unlike other 8-button controllers the D-Switch includes a 9th button for the dedicated backlight bus bar providing eight extra outputs for accent lighting. Activate all backlit accessories with a single press freeing up main outputs for other functions. Dynamic Channel Assignment. Unlike one-to-one switch panels the D-Switch allows multiple output channels per button giving you complete control over your setup. You can also assign multiple functions of an output to different buttons such as configuring one button for flashing and another for full power of the same light. Fast Responsive Bluetooth App. Control and configure settings using the Bluetooth app for iOS and Android which delivers instant response no lag and seamless programming. OEM Signal Integration. Three trigger wires are included to automatically activate your outputs with vehicle signals such as high beams fog lights or reverse lights. The ignition wire powers the controller when the vehicle starts shutting it down automatically when turned off. The Night Mode wire adjusts output settings and controller brightness for low-light conditions. Solid-State Durable Design. The D-Switch is built to withstand the toughest conditions with a solid-state design and an IP67-rated aluminum heatsink for superior heat dissipation. No mechanical relays to wear out or physical fuses to replace! Whether for off-road lighting or other 12V accessories the D-Switch offers unmatched power customization and reliability.
Additional Attributes:
GTIN: 00195995139153
Voltage: 9-16V
Illuminated: Yes
Switch Type: Push
Connector Color: Black
Switch Position Quantity: 2
Terminal Type: Screw
Housing Material: Aluminum
Terminal Quantity: 24
Connector Gender: Male Female
Terminal Gender: Female
Wiring Harness Included: Yes
Amperage Rating: 125
Mounting Bracket Included: Yes
Add-On: N/A
Prop 65 Yes/No: N
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 4 x 11 x 14 inches
Weight: 5.6 PG
