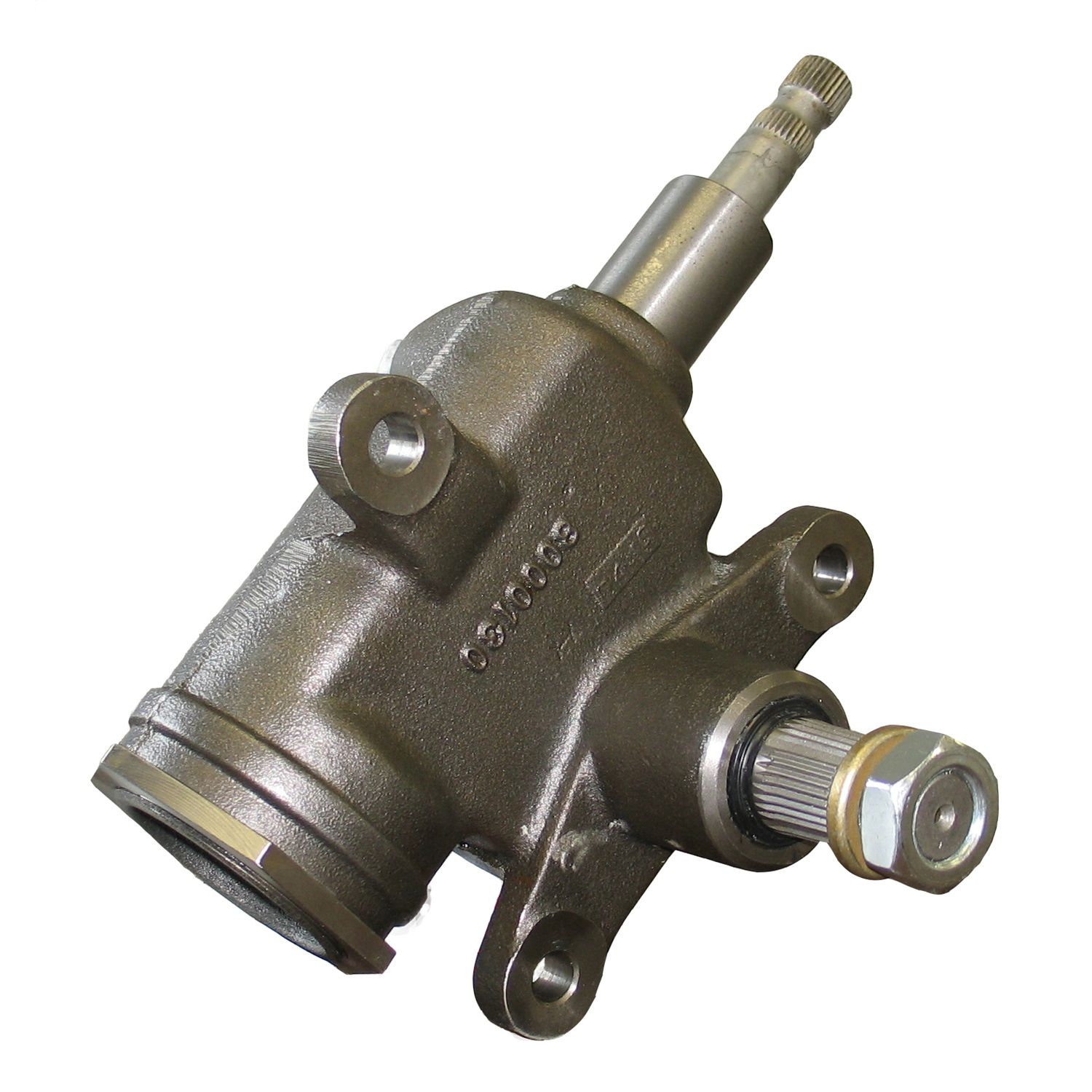

Borgeson – Manual Steering Box – P/N: 920042 – Saginaw Side-Steer style manual steering box. This is a true recirculating ball side steer style gear box. This box has a quick 16:1 ratio, the rotation of this box will move a pitman arm that is facing up forward toward the front of the car when making a right hand turn of the steering wheel.

Description

Borgeson OEM Saginaw 525 series manual steering boxes are the true OEM gears built to the original specifications and drawings from Saginaw, not an off-shore copy. Each gear features a precision machined casting created from the original tooling coupled with all new internals manufactured by Borgeson. Each gear is carefully assembled, inspected and tested to Borgeson's precise specifications.

Additional Attributes:

GTIN: 00843975017174
Color: Natural
Finish: As Cast
Input Shaft Spline Quantity: 30
Output Shaft Spline Quantity: 32
Splined Input Shaft: Yes
Output Shaft Diameter: 1.125
Housing Material: Cast Iron
Input Shaft Diameter: .750
Total Turns Lock To Lock: 4
CA Prop 65 Required: Y
Prop 65 – Long Label: WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds), which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12 x 14 x 6 inches
Weight: 17.5 PG

PDF:

msdsAW-2_Grease

Manual_Box_General
