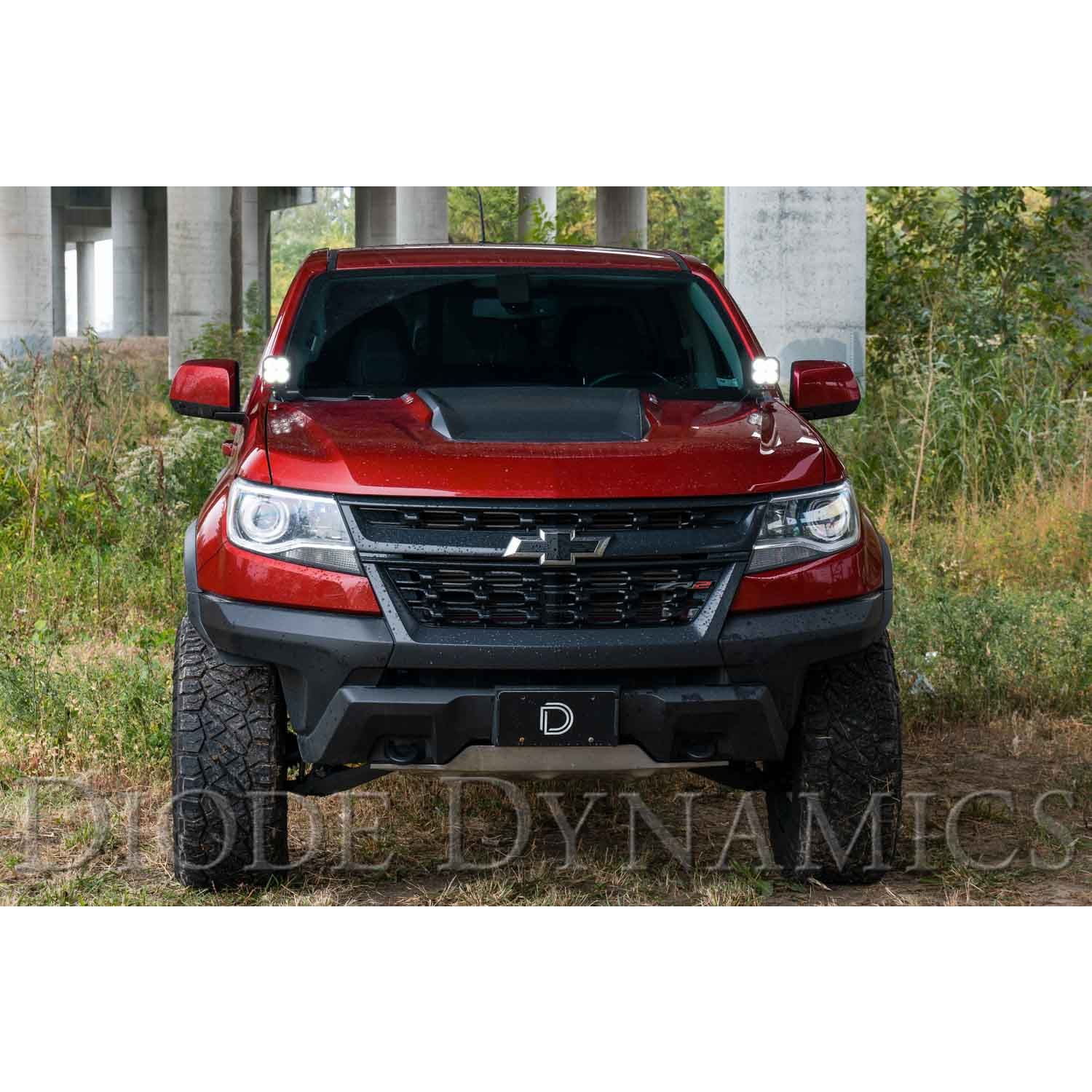

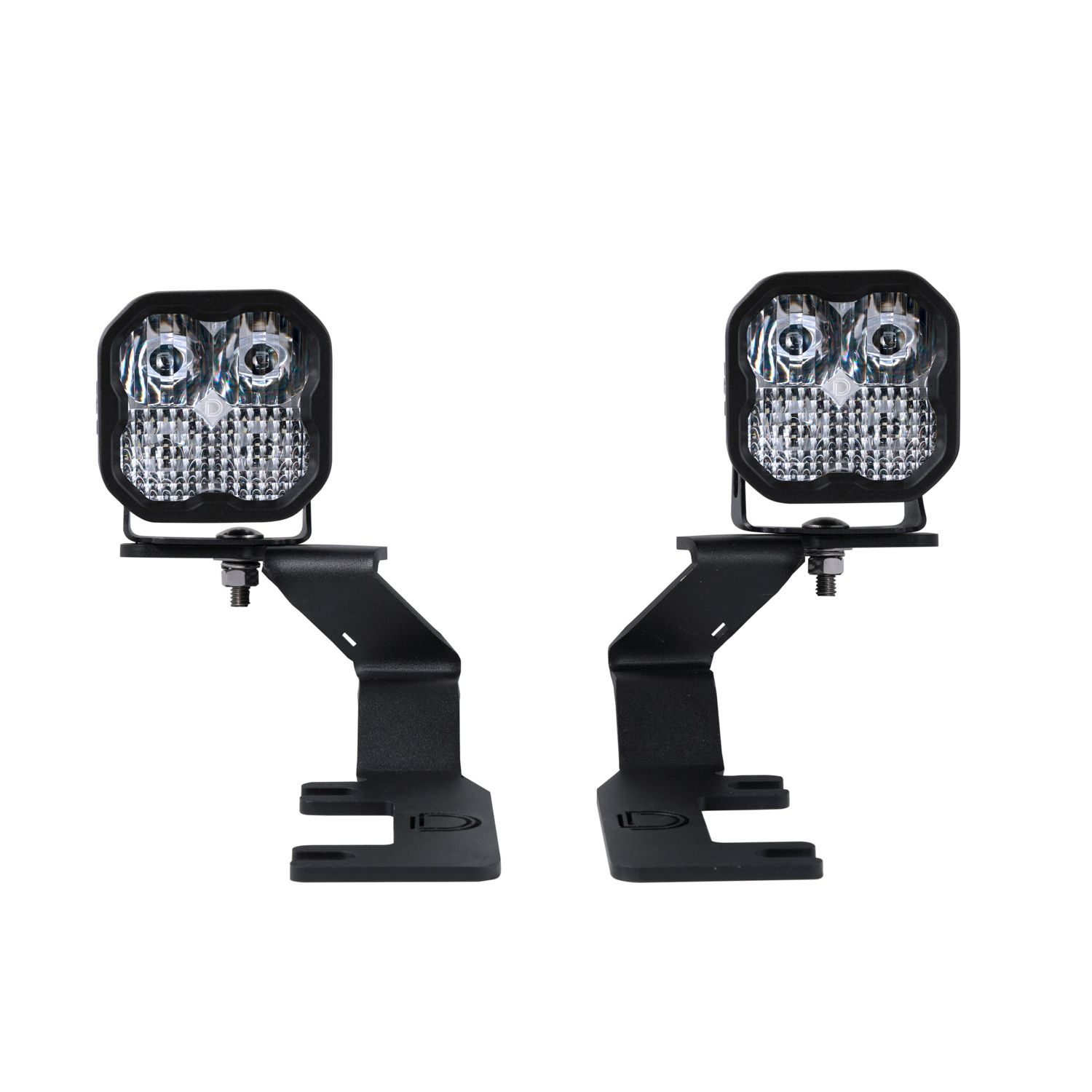

Allows you to mount two Stage Series 3″ LED Pods above the hood.

Description

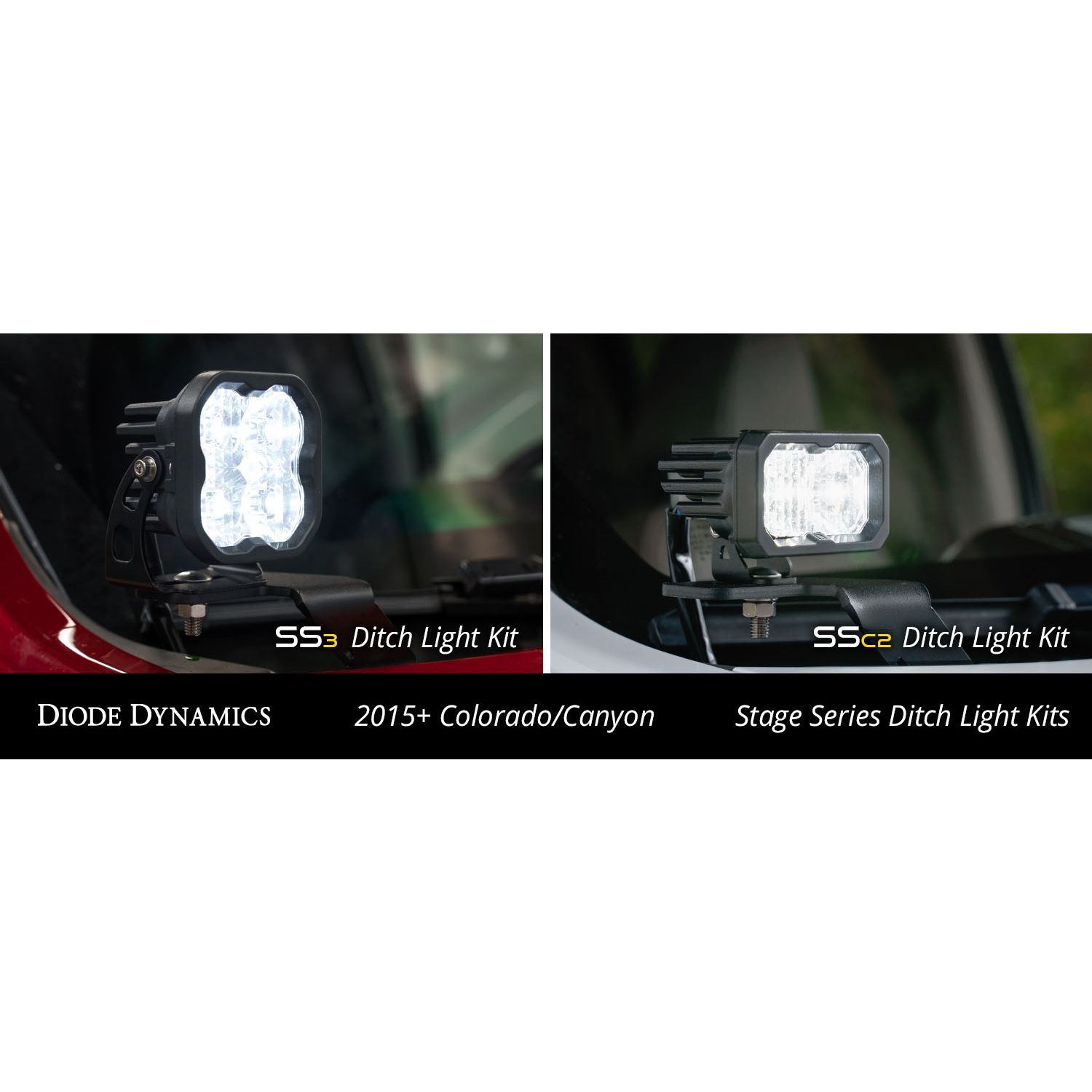

<p><strong>Features</strong></p><ul><li>Bolt-on fitment compatible with Colorado/Canyon 2015-2020.</li><li>Allows you to mount two Stage Series LED Pods above the hood.</li><li>Utilizes existing mounting points and hardware for a simple installation.</li><li>Thick-gauge stainless steel construction.</li><li>Low-profile design.</li></ul><br><p><strong>Overview</strong></p><p><strong>Perfect fitment.</strong> The Stage Series Backlit Ditch Light Kit compatible with Colorado/Canyon 2015-2020 allows you to easily mount two SS3 or SSC2 Backlit Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare and will not interfere with raising or lowering the hood.</p><p><strong>Backlight Functionality. </strong>Both the SS3 and SSC2 pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light along with the main beam. The backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight use the included harness to tap your desired vehicle function.</p><p><strong>Built to last. </strong> The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction you also won't experience any vibration or bouncing while driving.</p><p><strong>Focused.</strong> Optics like reflectors or simple lenses lose light internally and to glare. However the custom-engineered TIR optic in the SS3 and SSC2 collects all of the light from the LED and directs it only where you need it reducing glare and improving total efficiency.</p>

Additional Attributes:

GTIN: 00691026127392
Housing Finish: Powdercoat
Weather Resistant: Yes
Wire Quantity: 2
Housing Color: Black
Light Beam Pattern: Combination
Add-On: N/A
Base Material: Steel
Bolt Grade: High
Bolt Thread Type: Medium
Color Temp: 6000K
Compliance Rating: SAE J575 Durability Test
Drilling Required: No
Input Power (watts): 14.5
Intensity (lux): 66 500 cd
Intrusion Rating: IP67 Weatherproof
Measured Output (lumens): 3 000 lm
Mounting Hardware Included: Yes
Operating Temperature: -40C to 85C (-40F to 185F)
Operating Voltage: 9-16V
Prop 65 Yes/No: N
Sheen Level: Matte
Universal Or Specific Fit: Specific

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 15 x 9 x 12 inches
Weight: 8.388 PG
